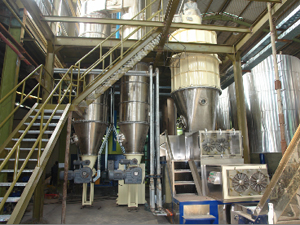

Vacuum Drying System

Vacuum Drying System

Description

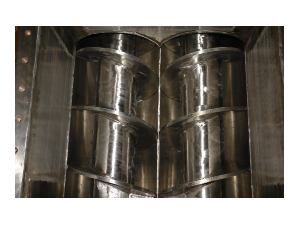

This soap mixer machine is specially designed for mixing soap base with other ingredients such as color, perfume, preservatives, additives and others. This soap machine features two special shaped mixing blades which are very sturdy. This machine is fabricated by using high grade raw materials that are procured from the most reliable vendors of this industry. The soap mixer machine is equipped with electric motors that can be switched on and off by automatic electrical panel.

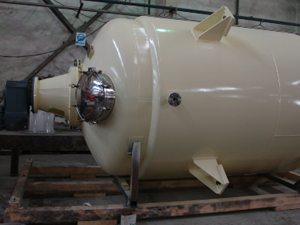

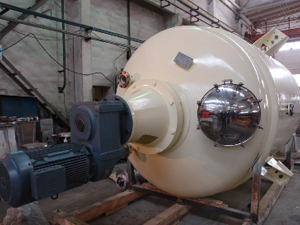

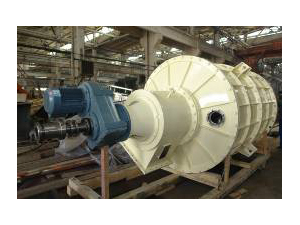

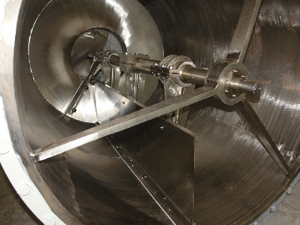

1. VSD Vacuum Dryer
This product has mechanical seal, automatic protection and transmission mechanism. It can produce toilet soap noodles (water content is from 11% to 28%). The contact parts between vacuum chamber and soap are all made of No. 304 or 316L stainless steel. SEW reduction gear is adopted. Rotating seal is adopted to the soap feeding nozzle. VSD is an important machine of vacuum drying system.

Parameters of Vacuum Dryer

Model No. Barrel Diameter Capacity Power
8000ES-VSD-1700 1700 mm 6 t-10 t 7.5 KW
3000ES-VSD-1500 1500 mm 2 t-5 t 5.5 KW
1000ES-VSD-1000 1000 mm 1 t-1.5 t 4 KW
500ES-VSD-1000 1000 mm 0.5 t-0.8 t 3 KW

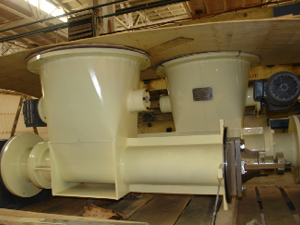

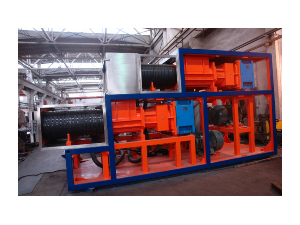

2. Pelletizer

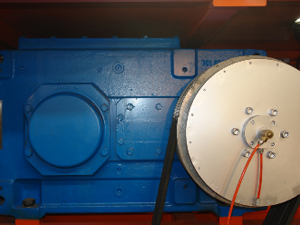

Pelletizer is another important machine of the vacuum drying system. It turns the soap into the shape of pellets. The screws are made of Al-Mg alloy or stainless steel 304. Gears with case-hardened and ground teeth are used as gear reducers. The gear reducer is from SEW company. The pneumatic clutches are supplied by Eton (USA). Pneumatic components are from FETSO Company. Speeds of upper and lower screw are adjustable from 5 rpm to 19 rpm.

Specifications of Pelletizers

Model No. Output/hour Screw Diameter (mm) Power (KW)
8000ES-SL-400 8000 kg 400 (mm) 75 × 75
6000ES-SL-350 6000 kg 350 (mm) 55 × 55
4000ES-SL-300 4000 kg 300 (mm) 45 × 45

3. Other Equipment in Vacuum Drying System

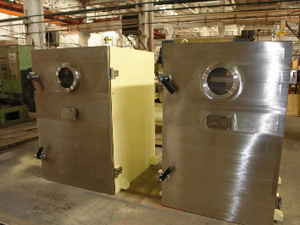

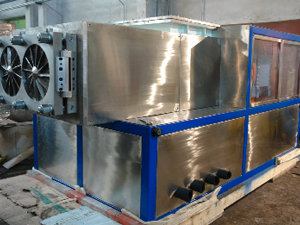

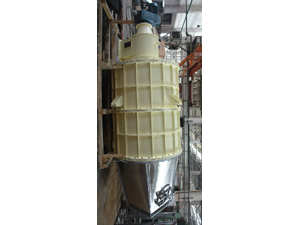

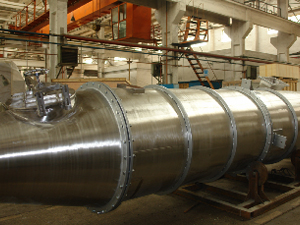

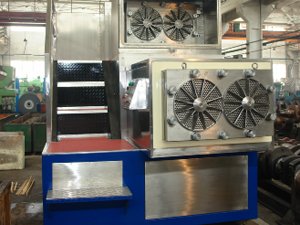

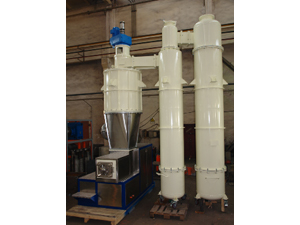

These pictures show other machine in this system. They are crutcher, soap dust extruder, cyclone separator
