3000ES Toilet Soap Finishing Line
Description

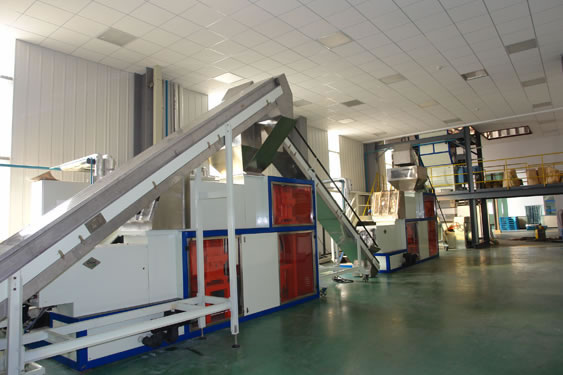

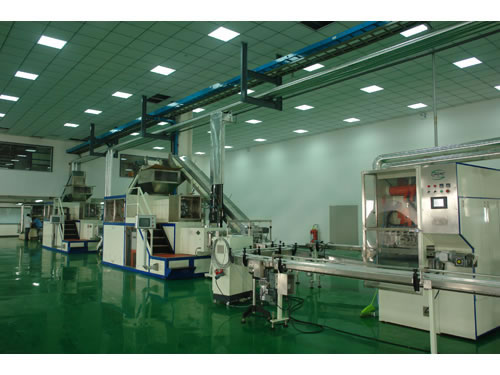

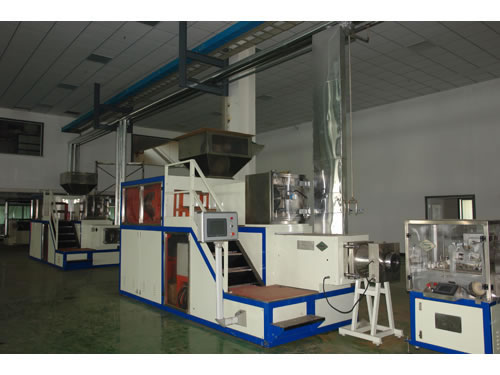

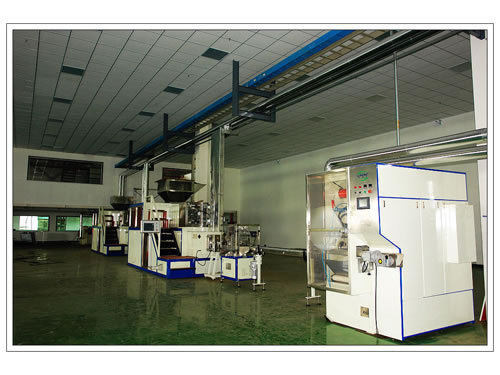

3000ES series toilet soap production line is a high-efficiency soap machine. The finished soaps contain 75-81% of fatty acid. Soap base and various other addictives are mixed through the mixer. Then the material mixture is made into soaps through the processes of refining, extracting, extruding, cutting, stamping and molding. A packaging machine is installed in this toilet soap production line used for packing up the finished soaps.
Features and Advantages
1. We choose superior components to match our products. This soap machine features good cooling system, special screws, strong transmission mechanism and well-ventilated environment.
2. The soaps produced by this toilet soap production line are exquisite and they have good foaming capacities.
3. This soap machine is simple in structure, easy to operate and reliable.
4. This product passes BV certification. It can produce various sophisticated shapes of fancy soaps in a wide range of sizes.
Use and Maintenance
We provide two years warranty service for this toilet soap production line and provide quick-wear for two years usage. All devices should be kept clean and be lubricated regularly according to instructions of the manual. Clients should pay attentions to voltage stability and make sure grounding wires are all unobstructed.
Parameters
Component Name |
Model |
Power |
Rotating Speed |
Notes |
Mixer |
3000ES-600Z |
18.5+18.5=30 kW |
A Shaft: 22 rpm B Shaft: 36 rpm |
|
Three-Roll Mill |
XGS-405-1200 |
45 kW |
A Shaft: 15 rpm B Shaft: 45 rpm C Shaft: 135 rpm |
|
Duplex Refiner |
3000ES-DR-350 |
37+37 kW |
18 rpm |
Screw Diameter: 350 mm |
Duplex Plodder |
3000ES-DRVP-350 |
37+37+2 kW |
Upper Screw: 18 rpm Lower Screw: 5-18 rpm |
Screw Diameter: 350 mm |
Cutting Machine |
3000ES-QKI |
4 kW |
50-220 times per minute |
|
Stamping Machine |
3000ES-MFS-6 |
3 kW |
5-45 times per minute |
|
Cartoner (Packager) |
XZB-200 |
3 kW |
15-180 times per minute |
|
Water Chiller |
|
20 PH |
|
|
Freezer |
|
15 PH |
|
|
Packaging & Delivery
Machines are packaged with wooden boxes (3 × 40`FCL) and transported by truck at home or by ship overseas.
