3000 Kg/H Toilet Soap Finishing Line
Description

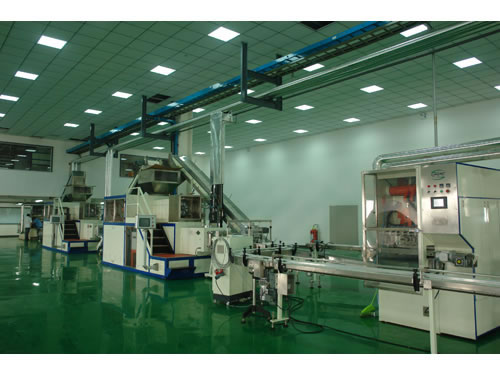

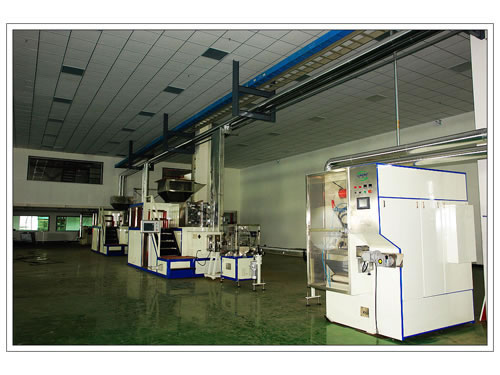

3000 Kg/H soap production line is mainly used for producing solid color toilet soap. It has a productive capacity of 3000 kg per hour. The complete soap line integrates the functions of mixing, refining, extruding, cutting, stamping and packaging. Fatty acid content in the finished toilet soap is 75-81%. This soap production line gets the French BV certification. Main components in this toilet soap equipment are mixer, triple-roller mill, simplex refiner, duplex refining plodder, rolling stamping and cutting machine, soap stamping machine, packager, water chiller, freezer and a complete set of conveyor belts.
Properties and Advantages
1. This complete set of toilet soap production line is designed of a simple structure. It is easy to operate.
2. This high quality toilet soap equipment is reliable and durable. There are less fault points in this line.
3. 3000 Kg/H soap production line is equipped with excellent cooling system, advanced special screws, high strength transmission mechanism and full-automatic freezing stamping machine.
4. This soap making machine can produce various types of soaps with diverse shapes. Weights of finished toilet soap are from 50g to 150g.
5. This high efficient soap production line has superior performance in saving energy.
Use and Maintenance
We provide two years warranty support and provide wearing parts for two years usage. Clients should keep each device clean and add lubricating oil to each device regularly according to the instruction manual. It is also suggested to pay attention to voltage stability and keep all ground wires unobstructed.
Parameter of the Toilet Soap Production Line
| Device Name | Model | Power | Rotating Speed | Notes |
| Mixer | 3000S-600Z | 18.5+18.5=30 kW | A Shaft: 22 rpm B Shaft: 36 rpm | |
| Three-Roller Mill | 3000S-405-1100 | 30 kW | A Shaft: 15 rpm B Shaft: 45 rpm C Shaft: 135 rpm | |
| Simplex Refiner | 3000S-DRD-350 | 37 kW | 18 rpm | Screw Diameter: 350 mm |
| Duplex Plodder | 3000S-DRVP-350 | 37+37+2 kW | Upper Screw: 18 rpm Lower Screw: 5-18 rpm | Screw Diameter: 350 mm |
| Cutting Machine | 3000S-QKI | 4 kW | 50-220 times per minute | |
| Stamping Machine | 3000S-MFS-6 | 3 kW | 5-45 times per minute | |
| Cartoner (Packager) | XZB-200 | 3 kW | 15-180 times per minute | |
| Water Chiller | 20 PH | |||
| Freezer | 15 PH |
Packaging & Delivery
This soap production line is packed with wooden boxes (3 ×40`FCL). This product is transported by automotive at home and shipped abroad.
LIMAC is a specialized soap equipment supplier in China. We design and develop all kinds of up-to-date soap production lines. In addition to the lines, we also provide single items used in these lines, such as soap mixer machine, plodder, cutting machine, soap packing machine and water chiller. Our products are widely appreciated by our clients for their excellent performances.
